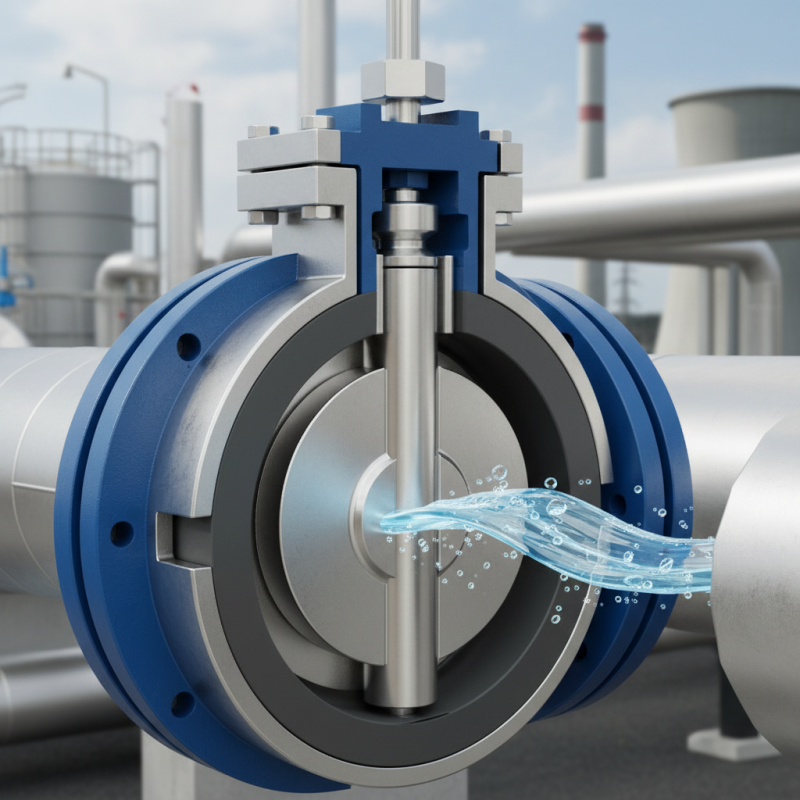

What is a Double Eccentric Butterfly Valve and Its Applications?

The double eccentric butterfly valve is a remarkable device in fluid control. Its unique design features two offsets in the disc's axis, which allows for improved sealing. This structure minimizes friction and wear during operation.

In various industries, double eccentric butterfly valves are crucial. They are employed in water treatment, chemical processing, and power generation. Their ability to handle high pressures makes them particularly valuable. Users often appreciate their efficiency and reliability.

However, like any technology, they come with challenges. Installation can be complex. Maintenance is essential to ensure long-term performance. Understanding these valves can lead to better decision-making for engineers and operators alike.

What is a Double Eccentric Butterfly Valve?

A double eccentric butterfly valve features a unique design that enhances its functionality. Unlike traditional butterfly valves, it has two offsets. One offset is from the stem to the disc, while the other is from the disc's center to the valve seat. This design reduces seat wear, enhancing its durability and lifespan.

These valves are widely used in various applications, including water treatment and HVAC systems. They are ideal for processes requiring tight sealing. Their lightweight construction makes them easy to install and maintain. However, installation can be tricky for some. Proper alignment is crucial for optimal performance. If misaligned, they may not seal correctly, leading to leaks and inefficiency.

In some cases, users may not fully appreciate the importance of regular maintenance. Neglecting this can lead to valve failure. Regular checks can prevent unexpected downtime, saving time and resources. While double eccentric butterfly valves offer numerous benefits, understanding their limitations is essential for successful application.

Design Features of Double Eccentric Butterfly Valves

Double eccentric butterfly valves are distinct for their unique design features. They have a butterfly plate that rotates around two distinct axes. This configuration reduces friction against the seat, which helps extend their lifespan. The double eccentric design ensures that the disc moves quickly and smoothly. Operators find that this reduces wear and tear significantly.

These valves have applications across various industries, including water treatment and chemical processing. Their ability to handle high-pressure and high-temperature environments makes them versatile. In addition, the body construction can often be customized. This customization might not always meet expectations. Sometimes, users discover a mismatch between valve specifications and operational needs. A careful approach is necessary to avoid such pitfalls.

Maintenance of double eccentric butterfly valves also demands attention. Regular inspection is vital for optimal performance. Users may overlook the importance of lubrication, leading to increased resistance during operation. Proper sealing is essential to prevent leakage during high-pressure use. Operators might sometimes face challenges when trying to identify the right adjustments. The nuances of valve maintenance can lead to missed opportunities for efficiency.

Advantages of Using Double Eccentric Butterfly Valves

Double eccentric butterfly valves offer several advantages that enhance system efficiency. Their unique design includes two offset shafts, which reduce torque requirements. This means less effort is needed to operate the valve, making it ideal for various industrial applications. According to a report by the Valve Manufacturers Association, these valves can improve operational efficiency by up to 20% compared to traditional designs.

One critical advantage of double eccentric butterfly valves is their ability to handle larger flow rates. In environments where fluid dynamics play a significant role, this capability can be essential. For instance, in water treatment plants, their performance can boost throughput. However, improper installation can lead to performance issues, necessitating careful attention during the setup phase. The improved sealing properties also contribute to reduced leakage, which is crucial in sectors like petrochemicals and pharmaceuticals. Yet, a flawed design or wear in the components can potentially compromise these benefits.

Furthermore, double eccentric butterfly valves typically exhibit a longer lifespan. Their design minimizes wear and tear, translating to lower maintenance costs. Nevertheless, they can be more expensive than traditional valves upfront. Some may question whether the initial investment is justified. A cost analysis often shows that long-term savings offset the initial costs, but this may not always hold true for every application.

Typical Applications of Double Eccentric Butterfly Valves

Double eccentric butterfly valves are widely used in many industries. They feature a unique design that reduces wear and tear, ensuring longevity. These valves are often installed in water supply systems, chemical processing, and HVAC applications. Their ability to handle large volumes of fluid makes them essential in municipal water treatment plants.

In chemical processing, double eccentric butterfly valves ensure tight sealing. This prevents leaks of hazardous materials. In power generation, they regulate the flow of steam or water. By providing precise control, they enhance overall system efficiency. However, they can be sensitive to pressure fluctuations. Regular maintenance is vital to address any potential issues.

Another common application is in the oil and gas industry. These valves perform well in extreme conditions, managing flow effectively. Their compact design saves space, which is an advantage in tight installations. Nevertheless, improper selection can lead to performance issues. Engineers must carefully consider the conditions before installation.

Maintenance and Installation Considerations for Double Eccentric Valves

When installing a double eccentric butterfly valve, proper care is crucial. The alignment of the valve is essential to ensure optimal operation. This means the valve must be positioned correctly with the piping. Improper installation can lead to leaks and inefficiency. Users should take their time during this step. Rushing can cause oversight.

Maintenance activities should occur regularly. Routine inspections can identify potential issues early. For example, check for leaks and ensure the valve opens and closes smoothly. Sometimes, dirt can accumulate in the valve, affecting performance. Cleaning the valve may be necessary. However, users must remember not to use harsh chemicals, as they can damage the seal.

Over time, you may notice wear and tear. This is normal, yet it requires attention. Replace any worn parts immediately to avoid larger problems. A proactive approach is better than waiting for a complete failure. Neglecting small issues can lead to unexpected downtime and higher costs. Being diligent about maintenance can extend the valve's lifespan significantly.
